Walkways, balconies and terraces over occupied space need to be reliably waterproofed to protect the structure and contents beneath, but also need to look good and be functional.
The BBA certified Triflex ProTerra is the perfect answer, providing a combination of reliable, long term waterproofing, highly durable surfacing and attractive design. The system is ultra-fast curing and cold liquid applied, allowing installation to be completed quickly, without the use of hot works, and with minimal impact on users.
With 4 system variants, over 50 standard colours and bespoke colours on request the system can be tailored to the project. Triflex Creative Design even allows the use of stencils and motifs for a truly unique finish.
Dynamic crack bridging, fully reinforced, cold applied system
Triflex lead from the front. Featuring unique resins with enhanced elastomeric properties and high tensile strength fleece reinforcement, we deliver a totally waterproof solution that can accommodate movement and cracking within the structure. There is no risk from hot works during installation as all Triflex materials are applied in a totally cold liquid form, curing to create a solution that lasts.
Fast curing with rapid installation
Rapid curing and easy to install, Triflex allows buildings to remain occupied during installation, limiting access restrictions and unnecessary disruptions to everyday life. Installation can be carried out all year round, and the majority of system variants still cure quickly at temperatures down to 0°C.
High levels of protection with a low lifecycle cost
The system performance is unaffected by ponding water and the system is resistant to chlorides (salts), carbon dioxide ingress, and approved de-icing and cleaning products.
The heaviest duty variant, Quartz Design with large grain quartz offers a robust solution for highly trafficked applications including local authority access walkways and permanent pedestrian traffic routes. With proven, long term performance Triflex ProTerra offers best value with a low lifecycle cost.
Many balconies, walkways and terraces have historically been waterproofed using asphalt which over time will fail. Triflex has more than 30 years’ experience of asphalt overlay in the UK, Triflex ProTerra is the ideal solution for directly overlaying failing asphalt to trafficked areas. In fact, whatever the substrate, we can provide a quick, easy and reliable overlay solution.
Safety and environmental
The solvent and isocyanate free resin technology has been assessed under BREEAM principles and can contribute to A+ ratings. The levels of skid resistance of a number of the finish variants make these particularly suitable for high risk, frequently trafficked areas.
Maximum design options
With 4 system variants offering different textures and surface finishes, combined with over 50 standard colours the system can be tailored to meet aesthetic and project needs.
- External walkways, balconies, terraces, pedestrian bridges and other pedestrian trafficked areas over occupied premises
- High risk areas subject to significant levels of structural movement and cracking
- Asphalt and polymer modified asphalt
- Concrete, concrete repair materials and screeds
- Existing membranes
- Structural plastics
- Cast in situ concrete
- Permanent formwork with in situ concrete
- Precast concrete planks with or without structural topping
- Precast double tee units with or without structural topping
- Steel / galvanised steel / structural plastic / timber constructions
- Insulated / warm deck build-ups

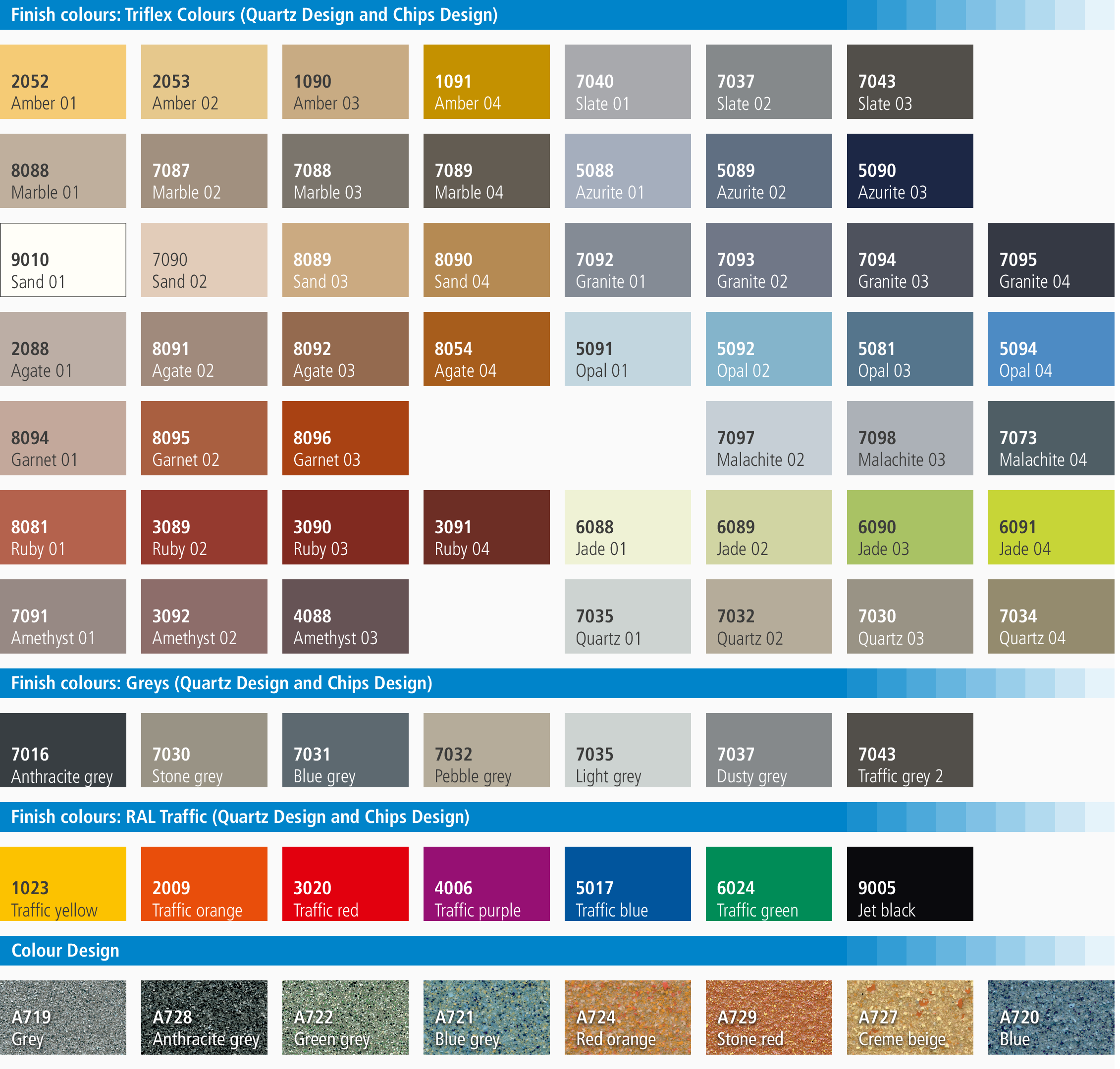

Triflex ProTerra is available with a wide range of finish options including Quartz Design, Colour Design, Chips Design and Stone Design and over 50 finish colours. The system can be tailored to meet aesthetic and project needs with special colours being produced to order.
For full details on the range of colours and finish options download the Triflex ProTerra colour card below.
Looking to buy?
Triflex installations are carried out through our network of Authorised Contracting Partners, if you are already authorised you can place an order by emailing email@example.com. Alternatively if you looking for an installer in your area, click here to find your local Business Development Manager, who will be more than happy to discuss your requirements and provide you with a list of suitable contractors.
Create your very own personalised design for your balcony or terrace with Triflex Creative Design! At the heart of the system is a self-adhesive sheet which once removed reveals your surface design. From classic tile patterns in various formats through to company and club logos or names, standard and bespoke designs are available.
Triflex Creative Design can be used with the Triflex MicroChips and Triflex Colour Design finish variants, so you have a multitude of creative options for creating your bespoke walkway, balcony or terrace.
Fully certified to the highest UK and European standards and classifications, including:
- Durability: Under normal service conditions the system will have a service life of at least 15 years
ETAG 005 certified (reinforced waterproofing membrane)
- 25 year expected working life
- EN ISO-11925-2
- EN ISO-9239-1
- EN 13501-1
Root and rhizome resistant (reinforced waterproofing membrane - Triflex ProTerra):
- FLL Certified: Root and rhizome resistant
- ISO 9001 Quality Management
- ISO 14001 Environmental Management
- ISO 50001 Energy Management
