Triflex ProDetail

A fast and easy PMMA liquid solution for waterproofing details, including upstands, gutters and penetrations
Find out more

Overview

BBA certified, CE mark

Roofs are most vulnerable to water ingress at the details, so it is essential that these interfaces are reliably waterproofed to protect the structure and contents beneath.

The BBA and ETA certified Triflex ProDetail is the proven, reliable solution for the fast and easy seamless waterproofing of virtually all details, including upstands, gutters, cut edge corrosion and roof penetrations. The fully reinforced system is ultra fast curing, even at temperatures down to -5°C, allowing installation to be carried out all year round in a simple, single process application. Tried and tested on more than 1,400 substrates and certified to the highest standards, it is easy to see why this versatile and long-lasting solution is the number 1 detail waterproofing solution in Europe.

Triflex ProDetail can be used stand-alone, in combination with other Triflex waterproofing, surfacing and protection systems and in combination with other waterproofing technologies.

System highlights

Waterproof smallest detail icon 99 x 99

Waterproof down to the smallest detail

Suitable for the secure waterproofing of upstands, gutters, penetrations, joints and much more, Triflex ProDetail is compatible with virtually all substrates and can be used to waterproof the most simple to the most complex of details.

Rapid installation fast curing icon 99 x 99

Cold applied, fast curing with rapid installation

Rapid curing and easy to install, Triflex allows details to be waterproofed seamlessly and quickly with the waterproofing being rainproof in just 30 minutes and cured in as little as 45 minutes. Installation can be carried out all year round and Triflex ProDetail still cures quickly at temperatures down to -5°C. There is also no risk from hot works during installation as all Triflex materials are applied in a totally cold liquid form, curing to create a durable solution that lasts.

Installation icon 99 x 99

Single process application

Triflex ProDetail is applied in a simple, single process and offers significantly reduced installation costs compared with multi-coat solvent-based systems, and eliminating the risks of inter-layer adhesion issues. Triflex ProDetail has a thixotropic formulation as standard, allowing it to be used on vertical surfaces straight from the drum.

Self-terminating icon 99 x 99

Self-terminating

With Triflex there is no need for termination bars as Triflex systems are fully self-terminating. By forming such a strong bond with the substrate, and thanks to its flexibility and fleece reinforcement, the system leaves no opportunity for water to permeate behind.

Fleece icon 99 x 99

Fully reinforced technology

The Triflex ProDetail system combines a unique highly flexible resin with a special high tensile strength polyester fleece. The system is proven to accommodate high levels of movement and cracking and differential movement between different substrates. Proven fully reinforced waterproofing technology that stands the test of time.

Shield icon 99 x 99

Tried and tested

Triflex ProDetail offers a complete detail waterproofing solution that will last for years to come. The system is not only certified and tested to the highest UK and European standards, it has also been successfully installed for more than 20 years in projects across the globe.

Triflex ProDetail was the first liquid applied detail waterproofing system to be certified under ETAG 005 and was the first product of its type to be CE marked in Europe

Durability icon 99 x 99

Tough and durable protection

The standard Triflex ProDetail system is designed for foot traffic and provides exceptional puncture resistance when compared to many alternative materials.

With high levels of chemical resistance, the system is suitable for industrial applications including bunds.

The complete solution icon 99 x 99

The complete solution

Triflex ProDetail is not only a proven stand-alone system but is also used in conjunction with other Triflex systems and other waterproofing technologies to provide a complete waterproofing solution.

Colour-Card icon 99 x 99

Colours and finishes

Create a design to meet your aesthetic or safety requirements with a wide range of colours and two optional finishes - refer to Triflex colour card.

ProDetail grid

Application areas

  • Upstands
  • Parapets
  • Cappings
  • Plinths
  • Gutters
  • Gutter joints
  • Drips
  • Rooflights / Sun-pipes
  • Hatches
  • Outlets
  • Laps / seams
  • Joints
  • Penetrations
  • Metal roof cut edge (end lap) corrosion

Compatible substrates

  • Felt
  • Asphalt
  • Bitumen
  • Single-ply membranes (e.g. PVC, PVC-P, EPDM, EVA, TPO, FPO, TPE, CPE, PIB, VET etc.)
  • Cementitious materials (concrete, brickwork, masonry)
  • Metals and coated metals
  • Plastics
  • Coatings (e.g. polyurethane (PU), polyurea (PUA), polymethyl methacrylate (PMMA), GRP etc.)
  • Solar reflective coatings
  • Glass
  • Plastics
  • Timber

System variants

Triflex ProDetail

ProDetail is a fully reinforced, seamless solution that is ideal for the fast and easy waterproofing of virtually all details, including upstands, gutters and roof penetrations.
View technical details

Optional coloured finish

Triflex ProDetail with a coloured finish allows detailed areas to be waterproofed to the same visual impression as our main area waterproofing systems, allowing them to suit perfectly and can be used locally for demarcation or logos.
View technical details

Optional heavy duty finish

ProDetail with a heavy duty finish is the ideal solution for detailed areas requiring increased anti-skid, impact and abrasion resistance.
View technical details

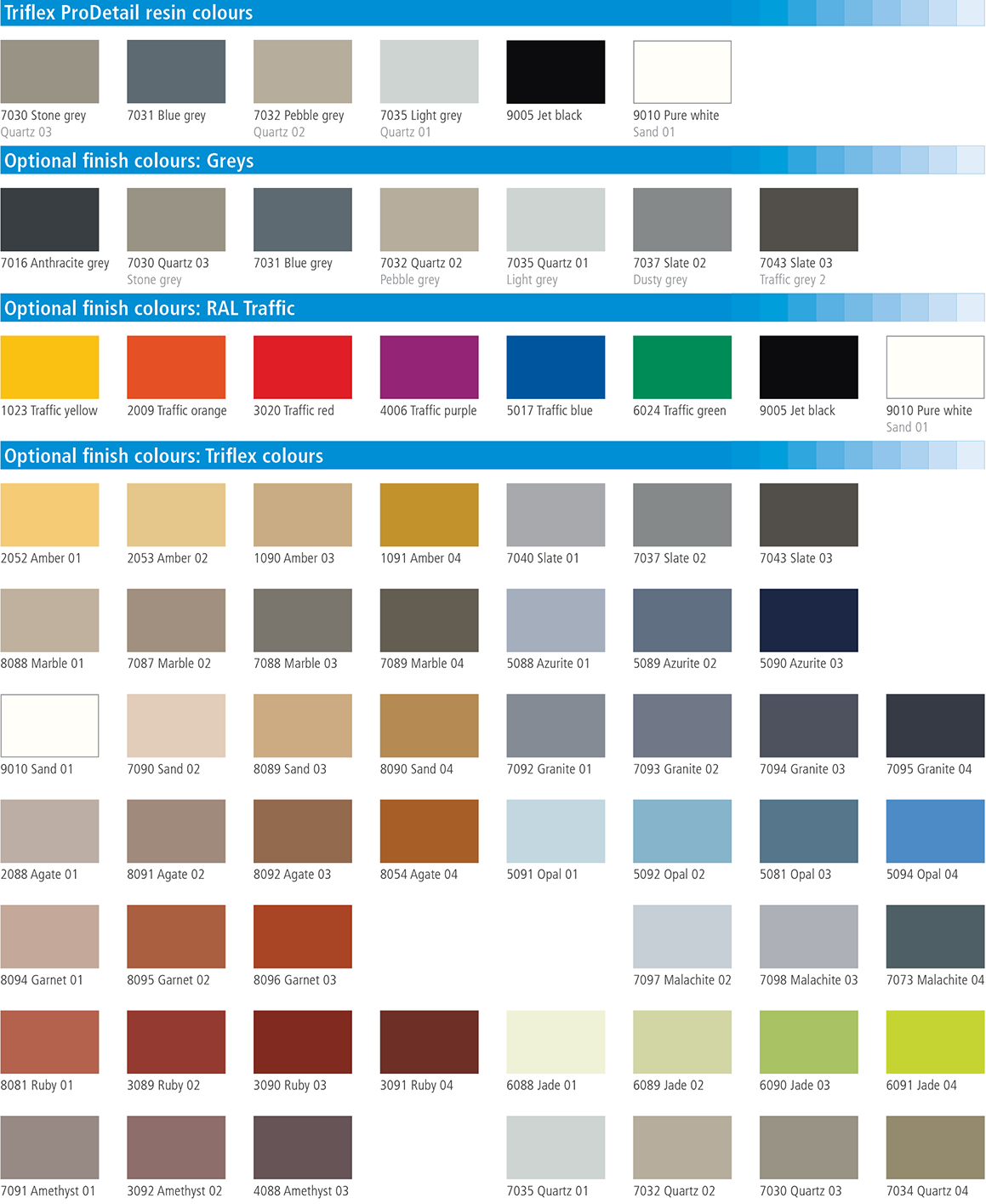

Triflex ProDetail colour card

Finish colours

Triflex ProDetail is available in a wide range of standard resin colours and optional finish colours, allowing the system to be tailored to meet aesthetic and project needs with special colours being produced to order. For full details see the Triflex ProDetail colour card below.

Request a sample

Require an on-site survey or quote?

All installations are carried out by our network of Triflex Authorised Contracting Partners. If you have a project we can provide a free no obligation on-site survey and can put you in touch with local Triflex contractors in your area that will be able to provide you with a quote.

To organise your free on-site survey you can either complete our project enquiry form or contact your local Business Development Manager, who will be more than happy to discuss your requirements.

Triflex Authorised Contracting Partners can place orders by calling 01785 819119 or emailing orders@triflex.co.uk.

Project enquiry

Certification and approvals

Primary test logos

Full system certified, tested and approved to the highest UK and European standards and classifications, including:

Certification:
  • BBA
  • ETAG 005
  • FLL : Root and rhizome resistant
  • EN 13948 : Resistant to root penetration
  • EN 13583 : Hail resistant
Tested to:
  • EN 13501-5 : Class BROOF (t1), (t2), (t3), (t4)
  • EN 13501-1 : Class E
  • BS 476-3 : EXT.F.AA
Satisfies or contributes to satisfying:
  • NHBC Standards 2020
Environmental rating:
  • BRE / BREEAM rated
Heat resistant:
  • Tested for overlay at 250°C
Show more

Take a look at Triflex in action

Looking for support?

Delivering solutions together, that's our motto. If you require any support, have an upcoming project or just a general enquiry then please don't hesitate to get in touch, we're always happy to help.
